Many industries require the right filter plate types to achieve efficient solid-liquid separation. First-time buyers often face challenges such as filter cloth blinding, mechanical damage, slurry compatibility, and high initial costs. Choosing a suitable filter press plate, filtration plate, recessed filter plate, chamber filter plate, or membrane filter plate can help address these issues.
Filter cloth blinding slows down filtration.
Mechanical damage may cause contamination.
Slurry compatibility affects performance.
High initial capital outlay can be a barrier.
Plate and frame filter plates represent the oldest design among filter plate types. They consist of alternating plates and frames arranged inside the filter press. The slurry enters the frames, and the filter cloths attached to the plates capture solids. Operators can adjust the cake thickness by changing the frame size. This flexibility makes them suitable for fine filtration and polishing tasks.
Plate and frame filter plates deliver high-clarity filtrate, making them ideal for applications that require precise filtration.
These plates require more frequent cleaning and maintenance compared to other filter plate types.
Their design allows for custom configurations, but increased downtime can occur due to maintenance needs.

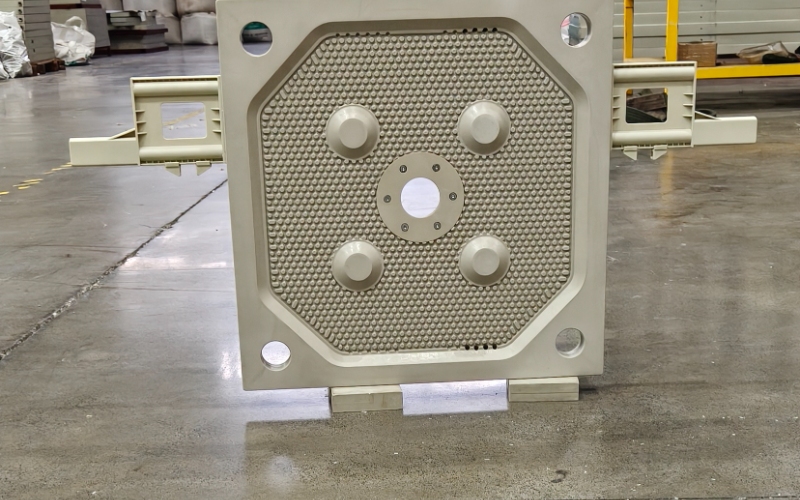

Chamber or recessed filter plates, such as those produced by XUDA Filtration, feature a robust design for high-pressure filtration. Each plate has a grooved surface that forms a chamber when paired with another plate. Solids collect on the filter cloth, while clear liquid passes through the outlet. These plates suit industries that demand consistent results and minimal maintenance.
Structural Features of XUDA Filtration Chamber/Recessed Plates
Chamber/recessed filter plates operate at higher fill pressures and often include gasketed edges for leak-free operation.
These plates handle high sludge volumes and provide moderate cake dryness.
XUDA Filtration uses high-quality polypropylene, which ensures chemical resistance and durability.
Chamber/recessed filter plates from XUDA Filtration offer reinforced edges and special pipped surfaces to protect filter cloths and enhance filtration.
Membrane filter plates use a flexible membrane that inflates with air or water to squeeze the filter cake after the initial filtration. This process reduces the moisture content in the cake and shortens the filtration cycle. Membrane plates excel in applications that require high dryness and rapid processing.
Membrane filter plates achieve cake dryness rates up to 90% and solid-liquid separation efficiency over 90%.
They require 50% less frequent maintenance and generate 30% less waste compared to other filter plate types.
These plates reduce energy costs due to shorter cycles and less energy needed for drying.

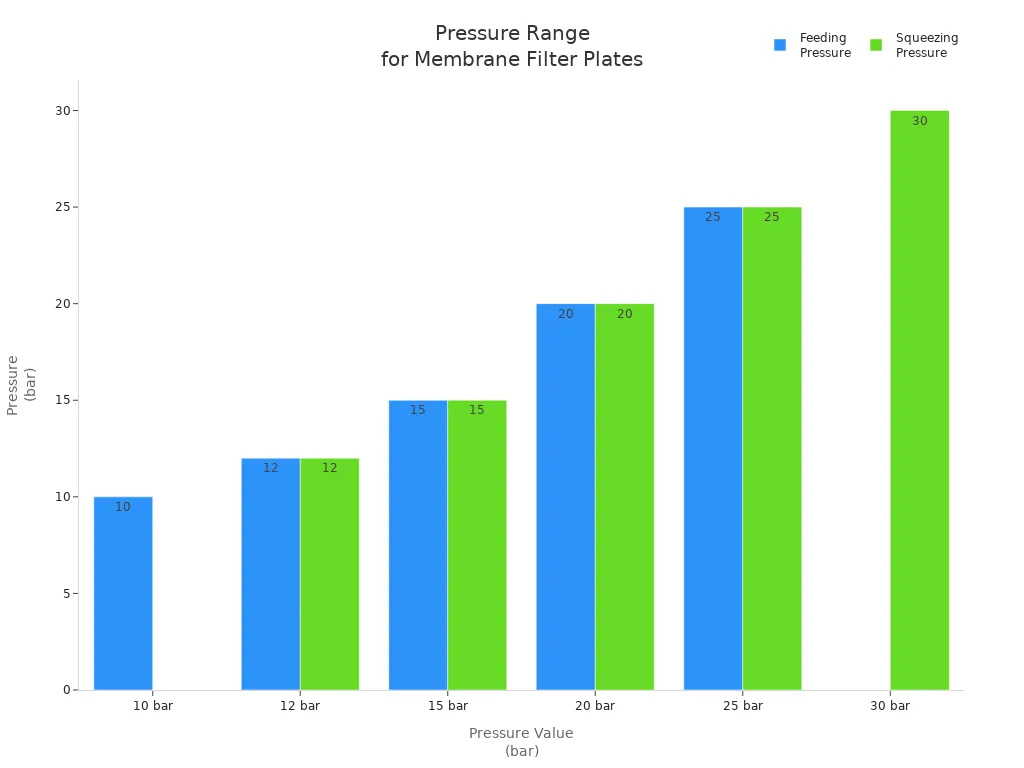

Pressure Range for Membrane Filter Plates
Pressure Type | Pressure Values |
|---|---|
Feeding Pressure | 10 bar, 12 bar, 15 bar, High pressure design of 20 bar and 25 bar available |
Squeezing Pressure | 12 bar, 15 bar, 20 bar, High pressure design of 25 bar and 30 bar available |
Dewatering Efficiency Comparison
Filter Type | Cake Dryness Improvement | Cycle Time Reduction | Throughput Potential |
|---|---|---|---|
Plate and Frame | Moderate to Good | N/A | N/A |
Chamber/Recessed | Moderate to Good | N/A | N/A |
Membrane Filter Plates | 5-15% Lower Moisture | Yes | Increased |
Gasketed filter plates use rubber gaskets around the edges to create a tight seal. The filter cloth fits into annular grooves, and compression forms a continuous sealing surface. This design prevents leakage of slurry or filtrate during operation.
Gasketed filter plates provide virtually leak-free operation, making them suitable for applications where containment is critical.
Polypropylene construction offers chemical resistance and durability, even in harsh environments.
The special pipped surface protects the filter cloth and enhances filtration performance.
Applications and Benefits of Gasketed Filter Plates
Feature | Benefit |
|---|---|
Excellent sealing | Virtually leak-free operation |
Chemical resistance | Suitable for harsh environments |
Durability | Long lifespan and reliability |
Special pipped surface | Protects filter cloth |
Material | Handles high temperature/pressure |
Gasketed filter plates are preferred in chemical, pharmaceutical, and food industries where product loss or contamination must be avoided.
Summary Table: Main Filter Plate Types
Filter Plate Type | Key Features and Benefits |
|---|---|
Plate and Frame | High clarity, customizable, more maintenance |
Chamber/Recessed | High pressure, robust, minimal maintenance |
Membrane | High dryness, fast cycles, energy efficient |
Gasketed | Leak-free, chemical resistant, durable |
Chamber/recessed filter plates provide strong chemical resistance and high-pressure operation. They suit industries that need reliable, efficient solid-liquid separation.
A membrane filter plate uses an inflatable membrane to squeeze the filter cake. This process increases dryness and reduces cycle time.
Yes. XUDA Filtration offers custom sizes, feed designs, and materials to match specific industry requirements. Our team provides expert guidance for tailored solutions.
