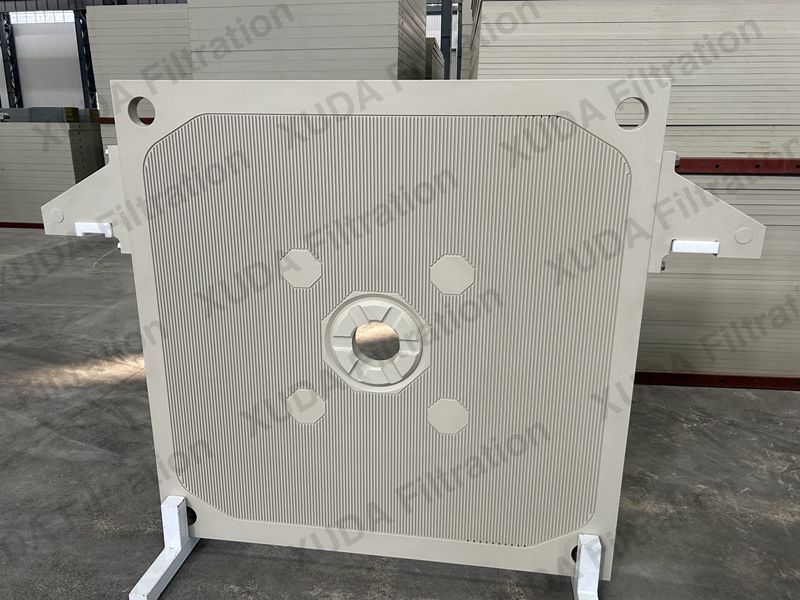

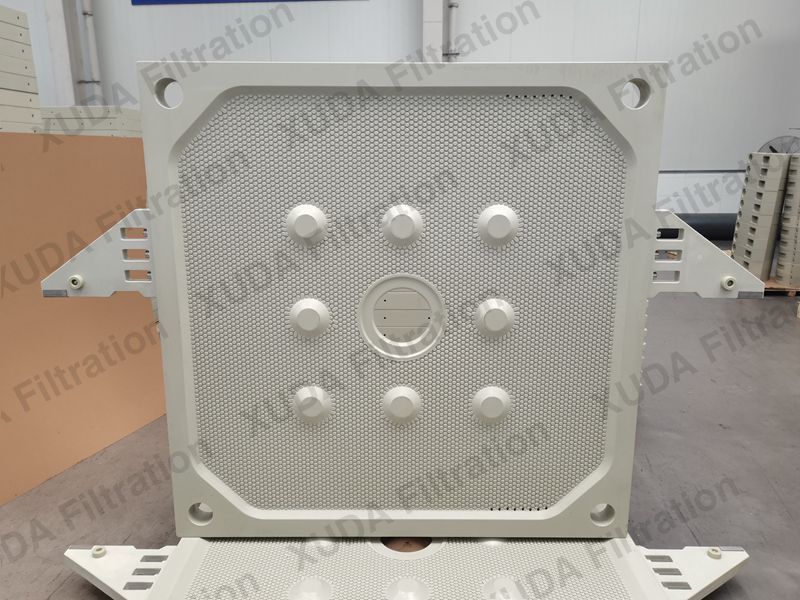

Chamber/Recessed Filter Plate

Chamber/Recessed Filter Plates are essential for efficient solid-liquid separation. Each Filter Plate features grooved surfaces that form chambers, trapping solids on filter cloth while clear liquid passes through.

Chamber/Recessed Filter Plate Specifications and Options

Size Available:

250x250/470x470/630x630/800x800/1000x1000/1200x1200/1250x1250/1500x1500/1500x2000/2000x2000

Larger and alternative formats available upon request.

Feed Design:

Center Feed/Corner Feed/Up Center Feed/Out Center Feed/Out Corner Feed

Other feed design is possible and can be made according to requirements.

Feeding Pressure:

10 bar

12 bar

15 bar

High pressure design of 20 bar and 25 bar are available.

Temperature:

0~60℃

60~95℃

Features

Chamber/Recessed Filter Plates are designed for efficient solid/liquid separation and offer several key features:

• High-Quality Materials: Made from polypropylene, these plates offer excellent chemical resistance and durability.

• Enhanced Filtration Efficiency: The recessed design forms chambers that collect solids on the filter cloths, ensuring high-quality filtrate.

• High Filtration Pressures: Capable of operating at pressures up to 50 bar, making them suitable for high-pressure applications.

• Robust Design: Reinforced edges provide additional strength and stability.

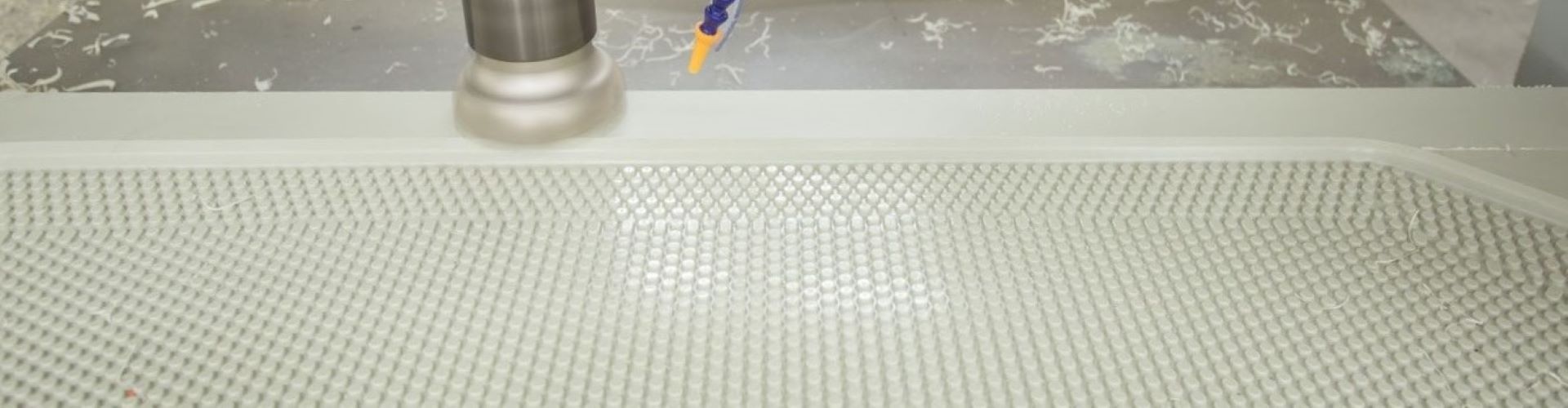

• Special Pipped Surface: Protects the filter cloth and ensures excellent filtration.

• Sealing and Leak Prevention: Gasketed designs help eliminate leaks, ensuring virtually leak-free operation.

• Customization Options: Available in various sizes (250 mm to 2000 mm) and thicknesses to meet specific filtration conditions.

Applications

Chamber/Recessed Filter Plates are used in a wide range of industries for efficient solid/liquid separation:

• Industrial and Municipal Wastewater: Effective in treating high concentrations of suspended solids.

• Chemical Processing: Suitable for separating chemicals and other industrial liquids.

• Pharmaceutical Industry: Used for separating active and inactive ingredients.

• Food and Beverage: Commonly used to separate particles from liquids, such as coffee grounds from coffee.

• Mining and Energy: Used for dewatering and solid-liquid separation in mining processes.

Industry Standards

Chamber/Recessed Filter Plates are designed to meet international standards, ensuring reliability and performance:

• DIN Standards: Some manufacturers produce filter plates in accordance with DIN standards, ensuring high-quality and consistent performance.

• Custom Designs: Many manufacturers offer custom designs to meet specific customer requirements, ensuring compatibility with existing systems.

For more information about Chamber/Recessed Filter Plates and how they can enhance your filtration processes, please contact us right now to get the most competitive quotation!
