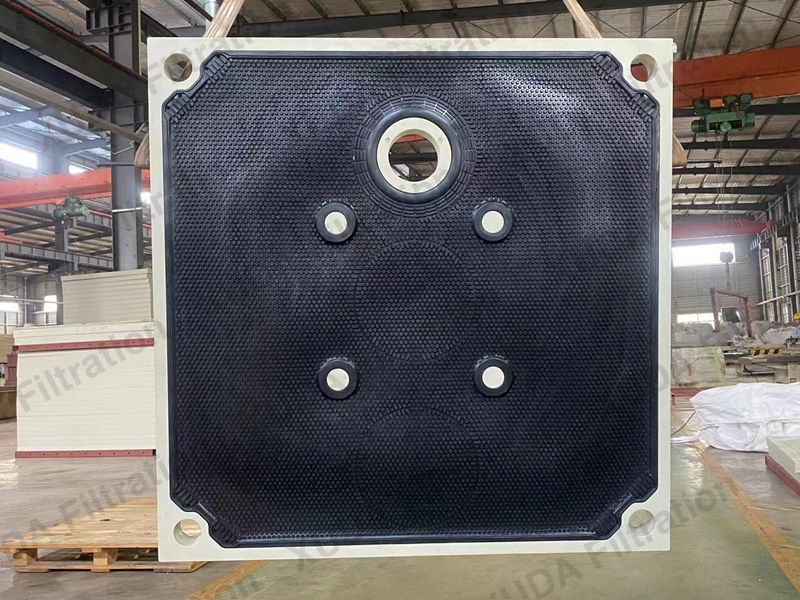

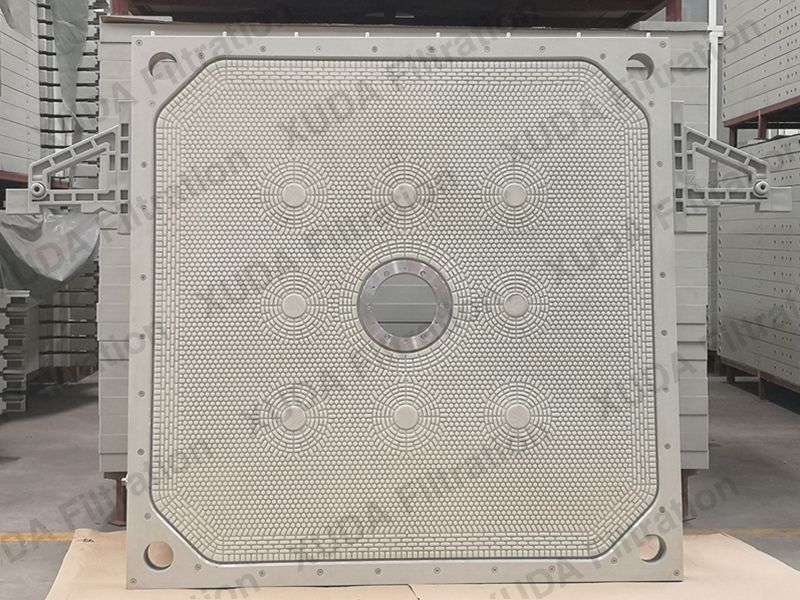

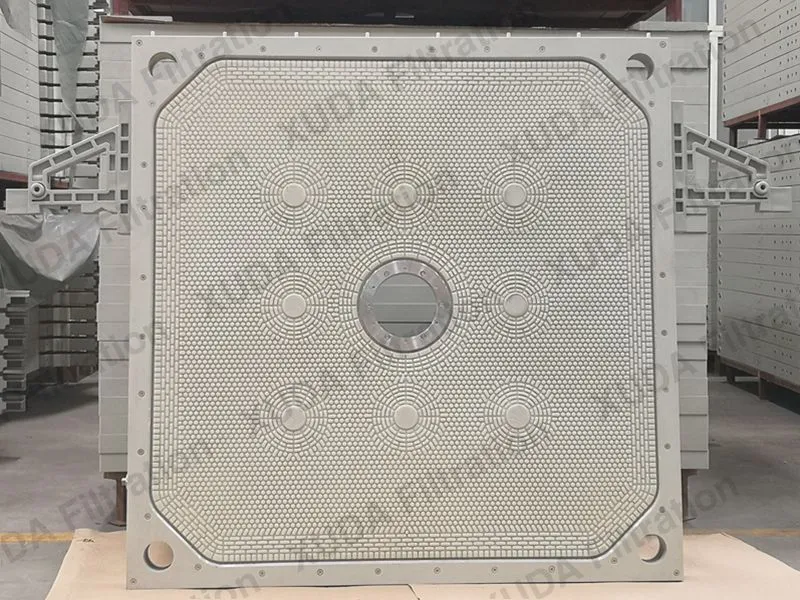

Membrane Filter Plate

Membrane Filter Plate: High-Efficiency Dewatering Solution for Industrial Filtration

XuDa membrane filter plates are designed to maximize filtration efficiency and minimize moisture content in filter cakes. By utilizing advanced membrane technology, these plates provide superior dewatering capabilities, making them ideal for industries where high dryness levels are critical.

Technical Specifications That Drive Efficiency

Size Available:

250x250/630x630/800x800/1000x1000/1200x1200/1250x1250/1500x1500/1500x2000/2000x2000

Larger and alternative formats available upon request.

Feed Design:

Center Feed/Corner Feed/Up Center Feed/Out Center Feed/Out Corner Feed

Other feed design is possible and can be made according to requirements.

Feeding Pressure:

10 bar

12 bar

15 bar

High pressure design of 20 bar and 25 bar are available.

Squeezing Pressure:

12bar

15 bar

20 bar

High pressure design of 25 bar and 30 bar are available.

Temperature:

0~60℃

60~95℃

Get Professional Support

Contact us to get customized membrane filter plate solutions based on your filtration requirements.

Why Choose XuDa Membrane Filter Plates?

Enhanced Filtration Efficiency: Achieves lower residual moisture content in filter cakes, reducing downstream processing costs.

Shorter Cycle Times: Speeds up the filtration process, enabling higher throughput and increased productivity.

Cost-Effectiveness: While the initial investment may be higher, the long-term savings from reduced moisture content and improved efficiency make it a cost-effective solution.

Versatility: Compatible with various materials and suitable for applications requiring precise control over cake dryness and filtration performance.

High-Quality Materials: Constructed from durable materials to ensure longevity and reliability in demanding industrial environments.

Applications

Membrane filter plates are suitable for applications where low cake moisture and high filtration efficiency are required:

Mining slurry dewatering

Chemical filtration processes

Wastewater treatment

Industrial sludge filtration

Membrane vs Chamber Filter Plate

Membrane filter plates apply additional squeezing after filtration, resulting in lower moisture content and shorter filtration cycles.

Material Engineering Breakthrough

Composite Membrane Technology

Four-Layer Co-Extrusion Structure:

Surface Filtration Layer (0.5μm precision)

High Elasticity Support Layer (Creep resistance coefficient ≥ 0.92)

Pressure Buffer Layer (25 Bar energy absorption patent)

Base Reinforcement Layer (Carbon fiber-reinforced PPO)

Military-Grade Certifications

ASME BPVC Section VIII Div.1 Certification

German TÜV 25 Bar Pressure Cycle Certification (300,000 test cycles)
