How Chamber Design Impacts Filtration Performance with Chamber Filter Plates

Chamber geometry shapes the results of every filter press filtration process. The chamber filter plate, recessed filter plate, and membrane filter plate each play a unique role in controlling cake thickness, pressure, and moisture. Reliable filter performance depends on advanced chamber design that meets industrial demands.

Chamber Filter Plate Geometry and Filtration Performance

Cake Thickness and Pressure Distribution in Chamber Filter Press

Cake thickness directly affects the separation process in a chamber filter press. Thicker cakes result from deeper chambers, which can enhance the efficiency of solid-liquid separation. Pressure distribution across the chamber filter plate ensures uniform cake formation and prevents defects. Proper design of the chamber filter plate maintains consistent pressure, allowing the filter to operate at high filtration pressures. Reinforced edges and advanced sealing technology help distribute pressure evenly and minimize leaks.

Operators monitor cake thickness to optimize filtration performance. Uniform cakes improve the quality of the filtrate and reduce cycle times. The chamber filter press can operate with up to 153 plates, and the depth of each chamber determines the thickness of the filter cakes. This control over cake thickness is essential for achieving reliable separation and maintaining high throughput.

Material Selection and Surface Engineering for Filtration Efficiency

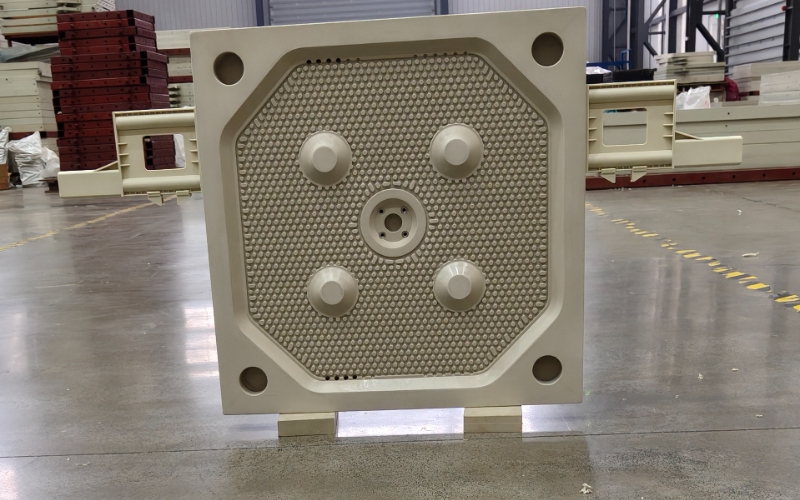

Material selection impacts the durability and chemical resistance of chamber filter plates. Polypropylene is a popular choice due to its strength and resistance to corrosive substances. Surface engineering, such as grooved or pipped surfaces, protects the filter cloth and enhances filtration. Advanced designs use gasketed plates to prevent leaks and ensure virtually leak-free operation.

Surface features improve the movement of slurry and the separation of solids from liquids. Operators choose materials and surface treatments based on the demands of the filtration process. High-quality chamber filter plates withstand high pressures and temperatures, making them suitable for a wide range of industrial applications. Customization options allow users to tailor the filter to specific slurry characteristics, optimizing efficiency and performance.

Filtration Outcomes Driven by Chamber Filter Plate Design

Throughput and Cycle Time in Filter Press Operations

The chamber filter plate determines the total filtration capacity in a chamber filter press. Operators clamp plates together, forming chambers that fill with slurry. The chamber thickness affects how much slurry enters each cycle. Thicker chambers hold more slurry, which increases filling and filtration times. Higher pump pressure can speed up the process, but operators must balance speed with filter cloth durability. Plate movement speed also impacts downtime between cycles. Advanced chamber filter plate designs, such as split beam systems, allow for simultaneous discharge of multiple plates, reducing cycle times and improving throughput.

Cake Dryness and Moisture Control with Chamber/Recessed Filter Plate

The chamber filter press uses recessed plates to form chambers filled with slurry. As pressure builds, liquid passes through filter cloths, leaving solids behind as filter cakes. Recessed chamber filter presses achieve higher cake dryness due to their design and high-pressure operation. Membrane plates compress filter cakes after filtration, extracting additional moisture and reducing downstream drying costs. Operators select chamber filter plates based on the desired dryness and moisture control for their process.

• Recessed chamber designs enhance filtration efficiency and prevent filter cakes from dislodging.

• Membrane plates produce drier cakes, lowering moisture content by up to 30%.

Filtrate Clarity and Quality in Chamber Filter Press Filtration Process

The chamber filter press pumps slurry into chambers formed by alternating plates. Under pressure, filtrate passes through filter cloths, while solids accumulate as filter cakes. The design of chamber filter plates influences the efficiency of solid-liquid separation and the quality of the filtrate. Gasketed plates create a leak-proof seal, essential for applications requiring high filtrate clarity. Chamber plate filters handle high-pressure filtration and perform cake washing, removing soluble impurities and enhancing filtrate purity.

Operational Reliability and Leak Prevention with Gasketed Chamber Filter Plates

Gasketed chamber filter plates provide a reliable seal, minimizing leaks during the filter press filtration process. Non-gasketed plates rely on filter cloths for sealing, which can lead to leaks. Gasketed plates use dedicated grooves for gaskets, ensuring consistent filtration performance even under high fill pressure. This reliability is crucial in sensitive applications, such as pharmaceuticals, where even minor leaks can cause product loss or safety hazards.

Engineering Comparison: Chamber, Recessed, and Membrane Filter Press Configurations

Performance Implications for Filtration in Industrial Applications

Engineers select between chamber, recessed, and membrane filter press configurations based on operational needs. Each filter type offers unique features and efficiency levels. The table below highlights key engineering differences and performance metrics:

Membrane filter presses achieve higher cake dryness and shorter cycle times. Recessed chamber presses offer simplicity and lower costs, making them suitable for many industries.

Application Suitability and Selection Criteria with XUDA Filtration Expertise

Selecting the right filter depends on the process, slurry properties, and system requirements. XUDA Filtration recommends considering several factors:

XUDA Filtration’s expertise helps clients assess slurry characteristics and operational goals. Their guidance ensures the filter system delivers reliable performance and long-term value.

Selecting the right chamber filter plate, such as XUDA Filtration’s Chamber/Recessed Filter Plate, ensures optimal throughput, dryness, and reliability for any filtration process. Advanced engineering knowledge helps operators match the filter to the slurry and process needs.
