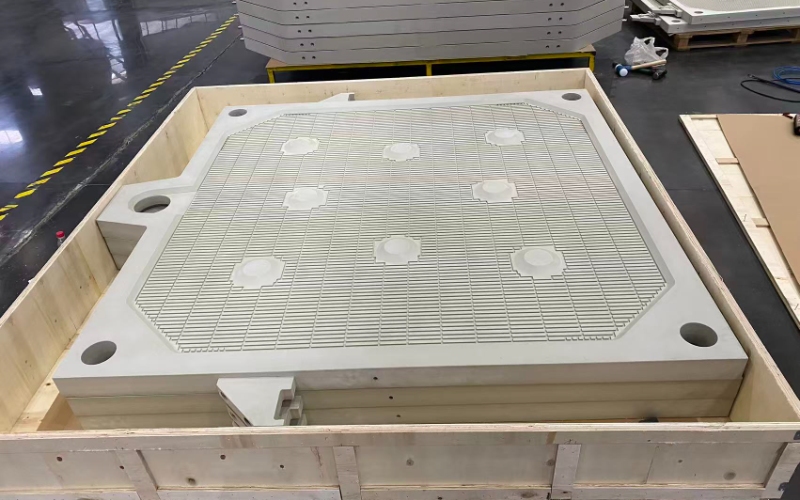

PP Filter Plate vs Cast Iron Filter Plate Surprising Facts Backed by Data

The pp filter plate vs cast iron filter plate debate centers on material performance. Polypropylene filter press plates, like XUDA Filtration’s chamber design, give a clear advantage in filtration, chemical resistance, and lower maintenance. These filtration plate options suit water and wastewater treatment, plate and frame filter press, and demanding filtration separation. Every filter press plate brings unique advantage and disadvantage. Plate frame filter plate remains essential for filtration, especially in wastewater.

PP Filter Plate vs Cast Iron Filter Plate: Quick Comparison Table

Material & Weight

• High-strength polypropylene filter press plates offer excellent corrosion resistance and flexibility.

• Cast iron plates provide durability for harsh applications but weigh significantly more.

• Polypropylene filter plates are lighter, making handling and installation easier in filter press design.

• Cast iron plates, while robust, can be a disadvantage in settings where frequent movement or maintenance is required.

Pressure Tolerance

Recessed chamber filter press systems often use polypropylene filter press plates for moderate pressure needs, while cast iron plates suit extreme pressure environments.

Chemical Resistance

Polypropylene filter press plates excel in filtration separation where chemical exposure is frequent, such as wastewater treatment.

Cost

• Cast iron filter plates typically cost between $800 and $1,200 each.

• Polypropylene plates cost 20-30% less than stainless steel alternatives, making them a cost-effective choice for many filtration applications.

Maintenance

• Regular inspection of filter cloths and filter press plates is essential.

• Polypropylene plates require less maintenance in corrosive environments.

• Cast iron plates may need more frequent checks due to their vulnerability to chemical corrosion.

Lifespan

• Polypropylene plates last 8-12 years.

• Cast iron plates can last 15-20 years, especially in non-corrosive settings.

• Recessed chamber filter press users should match plate material to process needs for optimal filtration and press longevity.

Filter Press Plate Performance Analysis

Filtration Efficiency Data

Filtration efficiency remains a critical factor in the pp filter plate vs cast iron filter plate debate. Industrial users rely on filter press plate performance to achieve optimal separation of solids from liquids. Polypropylene filter press plates deliver consistent results in plate and frame filter press systems. These plates trap solids efficiently, forming a dense filter cake that improves filtrate clarity. Cast iron plates also produce high-quality filter cake, but their weight can be a disadvantage during maintenance or installation.

Operators often select filter press plate materials based on the nature of the slurry and the desired filtration outcome. Polypropylene plates, with their smooth surfaces, reduce clogging and facilitate easy removal of filter cake. The filter cloths used with these plates further enhance filtration by capturing fine particles. Plate and frame filter press units equipped with polypropylene plates show improved throughput and reduced downtime. Filtration efficiency directly impacts process yield and waste reduction in industries such as wastewater treatment and chemical manufacturing.

Pressure & Temperature Resistance

Filter press plate selection depends on the ability to withstand high pressure and temperature. The following table compares the performance of polypropylene and cast iron plates under demanding conditions:

Polypropylene filter press plates operate reliably at temperatures up to 80°C. These plates maintain structural integrity during filtration, even when exposed to aggressive chemicals. Cast iron plates tolerate higher pressures, making them suitable for processes that require intense mechanical force. However, cast iron plates lack temperature tolerance data, which may limit their use in certain applications. Filter press design must account for these factors to ensure safe and efficient operation.

Press systems using polypropylene plates handle moderate pressures and temperatures, supporting a wide range of filtration needs. Cast iron plates excel in high-pressure environments, but their weight and susceptibility to corrosion can pose challenges. The choice of plate material affects the longevity and maintenance requirements of the press.

Chemical Compatibility

Chemical compatibility determines the suitability of filter press plate materials for specific industrial processes. Polypropylene plates offer superior resistance to corrosive substances, making them ideal for filtration in chemical manufacturing and wastewater treatment. These plates withstand exposure to acids, bases, and solvents, ensuring reliable separation and minimal degradation.

• In chemical manufacturing, filter press plates clarify liquids and recover valuable chemicals.

• Polypropylene plates handle corrosive substances and high temperatures, leading to higher yields and lower waste during catalyst recovery or intermediate purification.

• High-quality solid-liquid separation equipment uses corrosion-resistant materials for aggressive chemical wastewater.

• Polypropylene and stainless steel plates are preferred for handling challenging filtration tasks.

Cast iron plates, while strong, are not recommended for corrosive environments. Their vulnerability to chemical attack can shorten their lifespan and increase maintenance costs. Polypropylene filter press plates provide a robust solution for industries that demand chemical resistance and efficient filtration. The filter cake produced by these plates remains consistent, supporting process stability and product quality.

The filter press plate material selection influences the overall performance of the press. Operators must consider chemical compatibility, filtration efficiency, and pressure resistance to optimize their filtration systems. The right plate ensures effective separation, reduces downtime, and supports sustainable operations.

Durability & Maintenance in Plate and Frame Filter Press

Lifespan in Different Environments

The lifespan of a filter press plate depends on the environment and the materials used. Polypropylene plates perform well in chemical processing and wastewater applications. These plates resist corrosion and maintain structural integrity during filtration. Cast iron plates last longer in non-corrosive environments, such as mining or mineral separation. Operators often select plate materials based on the type of slurry and the expected filter cake quality. A plate and frame filter press with polypropylene plates provides reliable separation and consistent filtration results. The filter cake forms efficiently, and the plates withstand repeated press cycles. In harsh chemical environments, polypropylene plates offer a lifespan of 8-12 years. Cast iron plates can reach 15-20 years in less aggressive settings.

Maintenance Requirements & Costs

Maintenance for filter press plate systems involves regular inspection and cleaning. Polypropylene plates require less attention in corrosive filtration processes. Cast iron plates need frequent checks for signs of corrosion or wear. Operators clean filter cake from plates and replace filter cloths as needed. Maintenance costs depend on the plate material and the filtration environment. Polypropylene plates lower maintenance expenses in chemical and wastewater filtration. Cast iron plates may incur higher costs due to their vulnerability in aggressive slurry conditions. The press operates efficiently when plates and filter cloths remain in good condition. A well-maintained filter press ensures high-quality separation and reduces operational interruptions.

Operators achieve optimal filtration by monitoring plate condition and maintaining the press regularly.

Cost Comparison for Recessed Chamber Filter Press

Initial Investment

Choosing the right filter press plate impacts the initial investment for a recessed chamber filter press. Polypropylene plates offer a lower entry cost compared to cast iron plates. Many operators select polypropylene plates for filtration systems because they provide reliable filter cake formation and efficient separation. Cast iron plates, while durable, require a higher upfront investment. The following table shows the typical cost range for each plate material:

Polypropylene plates help reduce the overall cost of a press installation. Their lighter weight also lowers handling expenses during setup. Operators in wastewater treatment and chemical processing often choose polypropylene plates for their cost-effectiveness and filtration performance.

Long-term Operating Costs

Long-term operating costs depend on plate durability, maintenance needs, and filtration efficiency. Polypropylene plates resist corrosion and require less frequent maintenance. This reduces downtime and lowers expenses for filter cloth replacement and press cleaning. Cast iron plates, although strong, may need more attention in aggressive slurry environments. Maintenance teams spend more time inspecting cast iron plates for wear and cleaning filter cake buildup.

Polypropylene plates maintain stable filtration rates and consistent filter cake quality. Their resistance to chemicals extends plate lifespan and supports cost-effective press operation. Many industries rely on polypropylene plates to minimize maintenance costs and maximize filtration efficiency. Operators achieve reliable separation and reduce waste by selecting the right plate and filter cloths for their recessed chamber filter press.

FAQ

What makes polypropylene filter plates ideal for chemical processes?

Polypropylene filter plates resist acids and alkalis. They maintain performance in aggressive environments. Operators achieve reliable filter results and efficient separation in chemical manufacturing.

How often should operators inspect filter plates in a filter press?

Operators inspect filter plates every month. Regular checks prevent leaks and ensure consistent filter performance. Maintenance teams replace filter cloths as needed.

Can cast iron filter plates handle high-pressure filter applications?

Cast iron filter plates withstand high-pressure filter operations. They support demanding industrial processes. Operators use them for robust filter separation in mining and mineral processing.
