Filter Press Plate Maintenance Tips: Cleaning, Inspection and Replacement Guide

Filter presses are critical in many industrial separation processes—from wastewater treatment and mining to chemical manufacturing. The efficiency and longevity of these systems depend largely on how well you maintain the filter press plates. In this article, we share expert tips and proven practices for maintaining your filter press plates, ensuring consistent filtration performance, and reducing downtime.

For most industrial filter press users, effective filter press plate maintenance should focus on four areas: keeping sealing surfaces clean, preventing filtrate channels from blockage, checking plates for cracks or deformation, and coordinating plate maintenance with filter cloth inspection. A clean and well-aligned plate set helps maintain stable filtration pressure, reduce leakage risk, support uniform cake formation and extend the service life of the filter press system.

Filter press plates should not be treated as simple spare parts only after failure occurs. In applications such as chemical processing, mining, tailings treatment, wastewater treatment, food and beverage filtration, and pharmaceutical production, plate condition directly affects filtrate clarity, cake discharge, cycle time and operating safety. XUDA supplies different types of industrial filter press plates, including chamber/recessed filter plates, membrane filter plates, CGR filter plates and plate & frame filter plates, so maintenance should also be adjusted according to plate structure and working conditions.

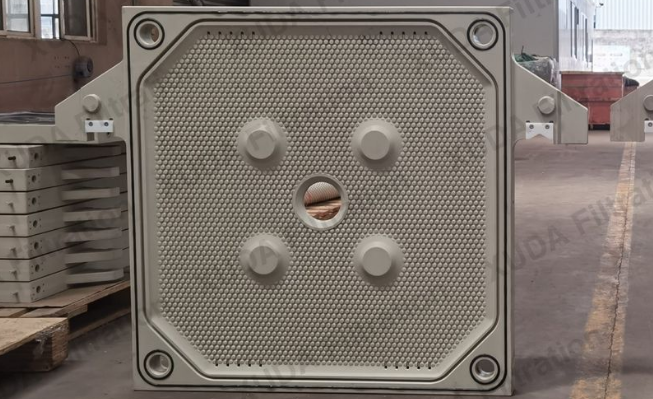

Understanding the Filter Press Plate Structure

Before diving into maintenance tips, it's important to understand the basic components of a filter press plate:

- Sealing Surfaces: These are the areas that ensure a tight seal between plates. They are prone to solid build-up if not cleaned regularly.

- Plate Web and Filtrate Discharge Channels: The design includes small "pips" or raised areas that help discharge clear liquid (filtrate). Over time, deposits may clog these channels.

- Stay Bosses: Structural supports that stabilize the plate during operation. Any damage or excessive build-up on these bosses can lead to performance issues.

Knowing the layout of your filter press plate is the first step in designing an effective maintenance strategy.

Why Regular Maintenance is Essential

Regular maintenance is more than just a routine chore—it is vital for the following reasons:

- Prolonged Equipment Life: Routine inspections, cleaning, and timely replacement of worn parts can extend the lifespan of your filter press plates.

- Enhanced Filtration Efficiency: Clean plates help maintain proper filtrate flow and ensure uniform cake formation, leading to better separation and reduced cycle times.

- Prevention of Downtime: Preventive maintenance minimizes unexpected failures, saving time and reducing costly production stoppages.

- Safety: A well-maintained filter press operates more safely, reducing the risk of leaks, pressure loss, or mechanical failure.

Key Maintenance Tips for Filter Press Plates

1. Daily Visual Inspections

- Inspect Sealing Surfaces: Use non-metallic scrapers or plastic spatulas to remove any residual solids from the plate edges and sealing areas. This prevents "blow-outs" (leakage during operation) and ensures even pressure distribution.

- Check Alignment: Make sure that all plates are correctly aligned and that no plate is warped, cracked, or broken.

- Monitor Stay Bosses: Look for any signs of damage or excess build-up on stay bosses. Clean these areas thoroughly to maintain structural integrity.

2. Regular Cleaning Procedures

- Pressure Washing: Clean the plates using a pressure washer at around 2,500 – 3,000 psi. This helps remove stubborn deposits from sealing surfaces, filtrate channels, and the plate web.

- Brush Cleaning: Use a medium-bristle brush in areas where pressure washing is not sufficient, particularly around filtrate discharge holes.

- Acid Rinse (When Needed): In applications with heavy scale or mineral deposits, an acid wash (using a mild, inhibited hydrochloric acid solution) may be necessary. Always follow manufacturer guidelines and safety protocols when using chemicals.

3. Preventive Maintenance Scheduling

- Establish a Maintenance Log: Record each maintenance activity, including cycle times, cleaning methods used, and any anomalies. This data is valuable for tracking performance and scheduling timely interventions.

- Keep Spare Parts On Hand: Plates can occasionally crack or break. Maintain an inventory of spare plates, gaskets, and filter cloths to reduce downtime during unexpected failures.

- Lubricate Moving Parts: Regularly check and lubricate the hydraulic system components, including the cylinder, bolts, and any chains or hinges that support plate movement.

4. Integration with Filter Cloth Maintenance

- Inspect Filter Cloths: Filter cloths work in tandem with the plates. Regularly inspect them for wear, holes, or blinding (clogging). A poor filter cloth condition can lead to inefficient filtration and increased pressure drop.

- Coordinate Cloth Change-Outs: Clean or replace filter cloths during plate maintenance to optimize the overall performance of the filter press.

5. Automated Cleaning Options

Consider integrating an automated cleaning system if your operation allows it:

- Automated Plate Cleaners: These systems use a combination of high-pressure water jets, programmable cleaning cycles, and specialized cleaning agents. They can reduce cleaning time by up to 75% and ensure uniform cleaning across all plates.

- Sensor Integration: Advanced systems equipped with sensors can monitor cleaning effectiveness in real time and adjust cleaning parameters accordingly.

Maintenance Considerations for Different Filter Press Plate Types

Different filter press plate structures require different inspection priorities. Although daily cleaning and visual inspection are important for all plates, operators should pay special attention to the features of each plate type.

Chamber/Recessed Filter Plate Maintenance

A chamber/recessed filter plate forms closed chambers when plates are pressed together. During operation, slurry enters the chamber, solids are retained to form a filter cake, and liquid passes through the filter cloth. Because the recessed chamber design directly affects cake formation and filtrate discharge, operators should regularly inspect the recessed area, sealing edge, feed hole and discharge channels.

For chamber/recessed filter plates, maintenance should focus on removing solids from the sealing surfaces, preventing blockage in the filtrate discharge path, and checking whether the plate remains flat and properly aligned. If a plate is cracked, warped or severely worn, it may lead to leakage, poor cake formation or uneven pressure distribution.

Membrane Filter Plate Maintenance

Membrane filter plates are used where lower cake moisture and improved dewatering performance are required. XUDA membrane filter plates are designed for high-efficiency dewatering applications and are available with different feeding pressure and squeezing pressure options. Because membrane plates include a squeezing function, maintenance should include both the plate body and the membrane area.

Operators should check whether the membrane surface is clean, whether there are signs of abnormal swelling, cracking or surface damage, and whether squeezing pressure remains within the designed operating range. The feed area, filtrate outlet and sealing surfaces should also be cleaned regularly to avoid uneven pressure or poor dewatering performance.

CGR Filter Plate Maintenance

CGR filter plates are designed for applications that require improved sealing performance. For this type of plate, maintenance should pay special attention to the gasket area, sealing groove and contact surface between plates. Any solid build-up, gasket damage or poor alignment may reduce sealing performance and increase leakage risk.

During inspection, operators should check whether the gasket remains properly seated, whether the sealing area is clean, and whether there are signs of compression damage. If leakage continues after cleaning and alignment adjustment, the gasket or plate may need replacement.

Plate & Frame Filter Plate Maintenance

Plate & frame filter plates have a different structure from recessed chamber plates. Since the plate and frame work together to form the filtration space, maintenance should include checking the contact surfaces, frame condition, feed channel and filter cloth installation.

Plate & frame systems may require more careful manual inspection because improper alignment, cloth folding or frame wear can affect filtration stability. Operators should confirm that the plate and frame are correctly matched before each operating cycle.

Best Practices for Effective Filter Press Plate Maintenance

Develop a Standard Operating Procedure (SOP)

- Create a detailed SOP for maintenance that includes step-by-step cleaning processes, safety measures, and troubleshooting tips.

- Train all operators and maintenance personnel on the SOP to ensure consistency and adherence to best practices.

Use the Right Tools and Cleaning Agents

- Non-Abrasive Tools: Always use non-abrasive scrapers and brushes to avoid damaging the plate surfaces.

- Suitable Cleaning Agents: Choose cleaning chemicals based on the type of deposits. For example, use mild detergents for organic build-up and inhibited acids for mineral deposits.

- Personal Protective Equipment (PPE): Ensure that all personnel wear appropriate PPE when handling cleaning chemicals or performing maintenance tasks.

Monitor Performance and Adjust Accordingly

- Regularly review maintenance logs and performance data. Look for trends such as increased cycle times or decreased filtrate quality that may indicate the need for more frequent cleaning.

- Adjust cleaning schedules based on operational data and environmental conditions.

Environmental and Safety Considerations

- Dispose of used cleaning solutions according to local regulations.

- When using acid washes, always add acid slowly to water (never the other way around) to prevent dangerous reactions.

- Ensure proper ventilation in maintenance areas to avoid the buildup of fumes.

Conclusion

Regular maintenance of filter press plates is essential for ensuring efficient, reliable, and safe operation of filtration systems. By adopting a proactive approach—performing daily inspections, using appropriate cleaning methods, integrating preventive maintenance practices, and considering automation—industries can optimize performance, extend the lifespan of equipment, and reduce unexpected downtime.

Remember, the key to successful maintenance lies in understanding your equipment, using the right tools and cleaning agents, and keeping detailed maintenance records. With these practices in place, you can keep your filter press operating at peak performance and maintain high-quality separation processes.

FAQ

How often should filter press plates be cleaned?

Filter press plates should be visually checked after each operating cycle or during routine shutdown. Cleaning frequency depends on slurry type, filtration pressure, solids build-up and filtrate channel condition. If leakage, longer cycle time or poor cake discharge appears, cleaning should be performed more frequently.

What causes filter press plates to leak?

Common causes include solids on sealing surfaces, poor plate alignment, damaged gaskets, cracked plates, warped plates or excessive pressure. The sealing area should be cleaned first, and then the plate body, gasket and alignment should be inspected.

Can damaged filter press plates be repaired?

Minor surface build-up or channel blockage can often be solved by cleaning. However, cracked, broken, severely warped or structurally damaged plates usually need replacement to avoid leakage, poor filtration performance or safety risks.

Why should filter cloth maintenance be done together with plate maintenance?

Filter cloth and filter plates work together during solid-liquid separation. If the cloth is worn, blinded or incorrectly installed, the plate may still show poor filtration performance even after cleaning. Coordinated maintenance helps improve filtrate flow, cake formation and overall filter press efficiency.

What information is needed for replacement filter press plates?

Users should provide the plate size, plate type, feed design, filtration pressure, working temperature, slurry type, chemical condition and current operating problems. For membrane plates, squeezing pressure information should also be provided.
