How to Maintain Filter Plates: Practical Inspection & Cleaning Guide

Regular filter plate maintenance helps prevent slurry leakage, blocked filtrate channels and unplanned downtime. This guide covers essential safety steps, component inspection, cleaning methods, chamber and membrane plate care, and replacement planning. Always follow the instructions for your specific filter press model.

1. Why Filter Plate Maintenance Matters

Proper filter plate maintenance keeps your filter press operating reliably and lowers the risk of leakage, blocked filtrate channels and unplanned downtime. Over time, sealing surface residue, blocked drainage, stayboss cracks or wrongly fitted membranes all degrade filtration performance. This guide from our after-sales team introduces the main maintenance routines: understanding filter plate components, inspecting plate bodies, cleaning sealing surfaces and filtrate passages, maintaining membrane filter plates, and preparing spare parts.

Always verify cleaning pressure, plate layout and replacement steps against your specific filter press model and the manufacturer’s manuals. Regular inspections allow operators to spot issues early and sustain stable filtration.

2. Pre-Work Safety Guidelines

Before carrying out any filter plate service work, follow the on-site procedures below:

· Shut down the equipment, release all pressure, isolate power sources and apply lockout/tagout. Never service a filter press that remains pressurized or lacks the required safety safeguards.

· Use proper hoisting equipment when lifting or handling filter plates, and keep hands clear of the gap between plates to avoid crushing injuries.

· Wear appropriate personal protective equipment, such as gloves and safety shoes, during plate handling and cleaning.

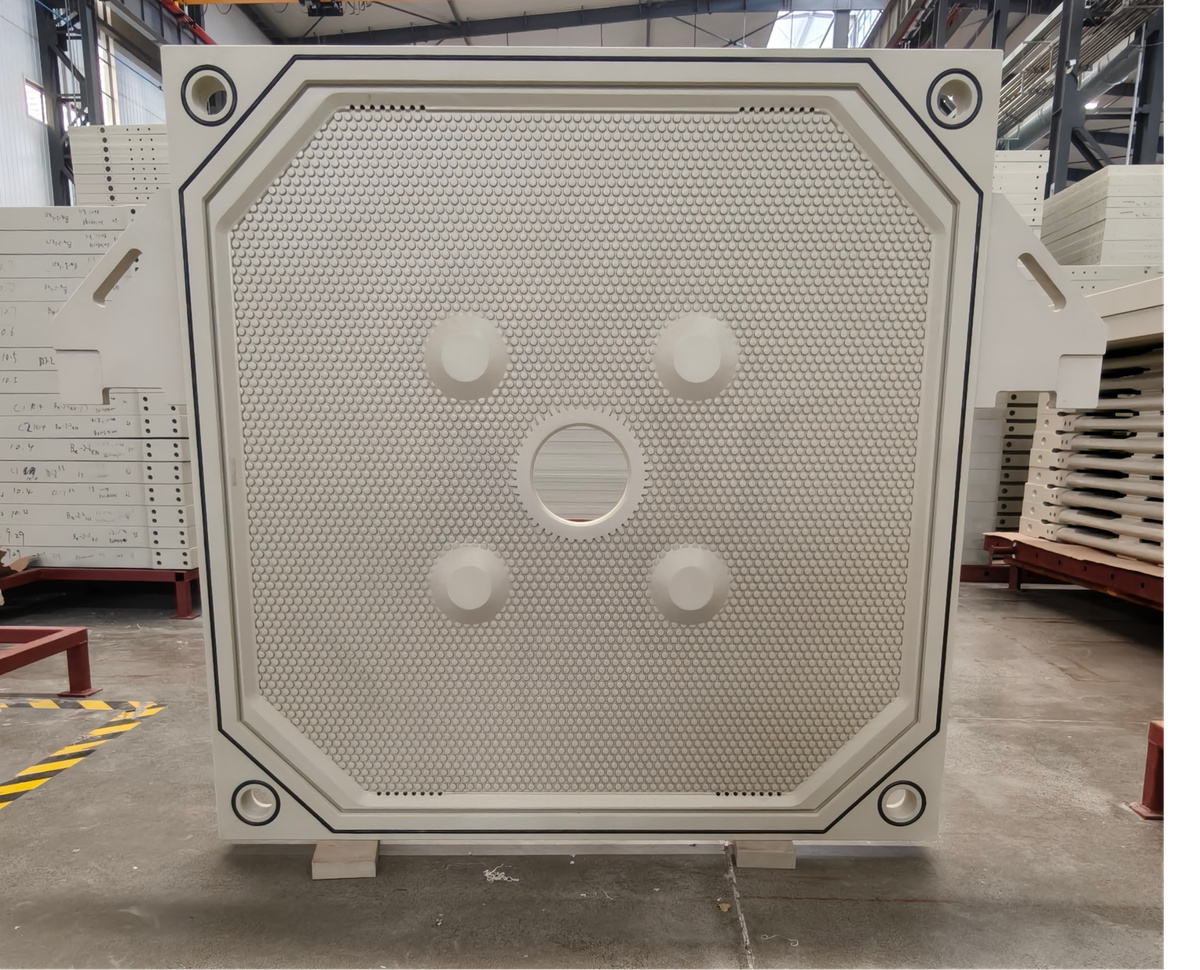

3. Understand the Main Parts of a Filter Plate

Filter plate designs vary, but common features include sealing edges, chamber areas, drainage points, filtrate holes and discharge channels. Membrane plates also have welded or detachable membranes. Identify the plate type and drainage layout before maintenance so the correct method can be selected.

· Sealing surfaces: contact areas when the plates are pressed together. Clean surfaces prevent slurry leakage.

· Drainage points and drainage areas: support the filter cloth and allow filtrate to flow over the plate.

· Filtrate holes, discharge channels and corner ports: route filtrate to the drainage system.

· Stayboss (raised support bosses inside the chamber): strengthen the plate structure; inspect their bases for cracks.

Plate designs differ by manufacturer and model. Use the equipment drawings and manufacturer’s instructions; do not assume all plates have the same structure or cleaning requirements.

4. Preliminary Inspection: Check Stayboss and Plate Body for Damage

Operating stress can crack staybosses or their bases and weaken the plate. Damage may affect filtration performance, accelerate wear and lead to failure, downtime and replacement costs. Routine checks help identify defects early.

· Examine boss bases, plate edges, corners and load-bearing zones for cracks or abnormal deformation.

· If cracks or severe structural damage exist, take the plate out of service and contact your supplier.

Regular visual inspection of plate bodies helps detect structural defects early and prevents unexpected plate failure during filtration cycles.

5. Controlled Cleaning Methods & Tool Guidelines

Residual filter cake can block flow channels, damage sealing surfaces and accelerate plate wear. During filter-cloth replacement, choose a cleaning method suited to the plate material and deposit type. Pressure washing and manual scraping are common options, but both require care to avoid damage.

5.1 Pressure Washing

Pressure washing is suitable for removing filter cake and light scale during routine cloth replacement.

· Maintain the cleaning pressure at 4.0/5.0 MPa, unless otherwise specified by your filter plate supplier.

· Select proper nozzles and keep a safe working distance.

· Keep the spray moving continuously; avoid concentrated, close-range jets aimed at sealing edges, fragile zones and membrane surfaces.

· Never arbitrarily increase the pressure just to speed up cleaning.

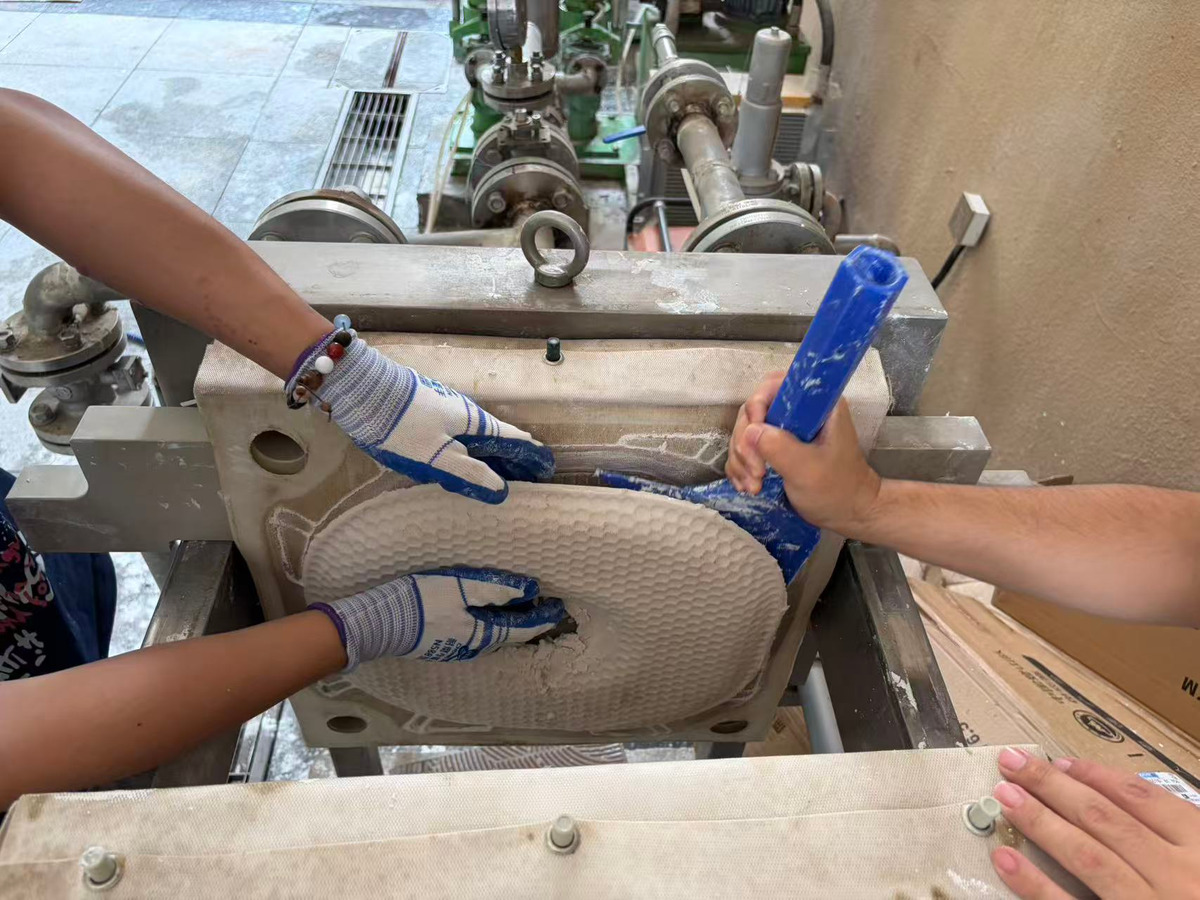

5.2 Manual Scraping and Brushing

Manual scraping is used for stubborn or hardened deposits that pressure washing cannot remove.

· Use a plastic scraper or other non-metallic tools to remove deposits.

· Identify the deposit type first, then choose brushing or scraping accordingly.

· Do not use sharp metal tools, as they can scratch sealing surfaces.

· Consult the manufacturer if you are unsure of the correct pressure values.

Well-controlled cleaning protects sealing surfaces, drainage passages and the overall integrity of the plates.

6. Routine Maintenance for Chamber Filter Plates

Chamber filter plates call for two routine tasks: keeping the sealing surfaces clean, and keeping the drainage areas and filtrate channels clear.

6.1 Clean Sealing Surfaces When Replacing Filter Cloth

· Residual cake and scale build up on sealing surfaces and disrupt sealing. This causes seal leakage, damages filter cloths and plates, and raises downtime and replacement costs. Keeping sealing surfaces clean is one of the most effective ways to extend plate service life.

· After scraping away deposits, inspect the sealing edges for cuts, chips, wear or deformation. If significant damage appears, assess whether the plate requires professional evaluation or replacement.

· When cleaning is finished, double-check that no particles, cake fragments or tool debris remain on the sealing surfaces.

6.2 Keep Drainage Areas and Filtrate Channels Clear

Fine solids and scale can build up in drainage zones and filtrate channels, restricting flow. Blocked passages reduce filtration efficiency and can disturb cake formation. Uneven pressure may contribute to plate deformation or cracking, increasing the risk of early failure and replacement costs.

· Inspect these key areas every time you replace the filter cloth, and carry out scheduled maintenance cleaning based on site operating conditions.

· Use plate-friendly brushes to remove deposits in the drainage areas; avoid hard or sharp tools that can scratch and damage plate surfaces.

· Fully check filtrate holes, channel junctions and corner ports to spot partial or complete blockages.

· Carry out a visual inspection of all passages once cleaning is finished.

· For heavy, stubborn scale, test the deposit composition before using strong cleaning chemicals. In practice, sample a small amount of the deposit and check whether it dissolves in water, dilute alkali or dilute acid; choose the chemical accordingly, and rinse thoroughly with clean water afterwards.

· Do not clean only the chamber surfaces and overlook the discharge channels. Keep the original filtrate pathways intact and protect the drainage structures during all maintenance work to extend plate service life.

7. Additional Attention for Membrane Filter Plates

Membrane filter plates share the basic cleaning steps with chamber plates, but they have extra vulnerable components: the membranes and their mounting grooves. Membrane defects or misalignment in the grooves break the sealing fit: squeezing performance is impaired and slurry leakage follows, the mating plate surfaces wear faster, and the press eventually suffers unplanned downtime and frequent membrane replacement. Careful membrane and groove inspection is therefore a vital part of filter plate maintenance for sealing reliability.

· Inspect the hinges and joints on fixed-membrane plates for cracks and tears.

· Ensure that replaceable membranes sit fully and evenly inside the grooves, following the manufacturer’s guidelines.

· Check membranes for cracks, material ageing and abnormal deformation. Contact your supplier before re-using any damaged plates.

Membrane plates work differently from standard chamber plates. Do not use unapproved tools or cleaning procedures, and always follow the model-specific instructions for membrane replacement.

8. Filter Plate Replacement Criteria & Spare-Part Planning

8.1 When to Replace a Filter Plate

Cracked or deformed plates may lose structural stability, cause inconsistent filtration and damage adjacent plates. Professional assessment and sensible spare-part planning can reduce downtime and emergency procurement. Replacement is generally needed when cracks extend through the plate body or a stayboss base, deformation prevents proper sealing, or sealing edges have damage beyond minor repair.

As a practical guide, replace a plate when any of the following is found:

· Cracks run through the plate body or a stayboss base.

· Deformation prevents proper sealing contact.

· Sealing edges are worn, chipped or cut beyond minor repair.

When in doubt, consult the manufacturer.

8.2 Spare-Part and Layout Planning

· Record the plate model, dimension, type and layout information to guarantee spare-part compatibility.

· Before removing plates or changing the plate quantity, consult the filter-press manufacturer. Do not operate with plates removed unless the required formal risk assessment and approved procedures have been completed.

· Retain the manufacturer-defined plate layout and flow configuration when running air-blowing, cake-washing or other post-filtration processes.

· Follow the manufacturer-defined sequence and layout, including the arrangement of chamber and membrane plates. Where required by the machine design, plates must be removed in pairs to support post-filtration operations such as air blowing and cake washing.

Plate removal, sequencing and flow configuration are machine-level operating requirements. Follow the main filter-press manual as well as this maintenance guide.

9. Support You Can Rely On

Regular inspection and cleaning help protect sealing surfaces, clear filtrate channels, and detect damage early. Check plates when replacing filter cloths to reduce downtime.

Need help with plate selection, cleaning, or spare parts? Contact Xuda Filtration for solutions suited to your equipment and operating conditions.
