How to Avoid Filter Cloth Clogging?

Filter cloth clogging is a common issue in filtration systems, leading to decreased efficiency, shorter operational cycles, and compromised performance. This article outlines three professional solutions to prevent and address clogging: controlling feeding pressure, applying a pre-coating layer for specific industries, and implementing regular cleaning protocols. By following these strategies, you can enhance filtration performance and extend the lifespan of your filter cloth.

How to Prevent Filter Cloth Clogging: A Guide from After-Sales Service Experts

As a user of filtration systems, you may have experienced the challenge of filter cloth clogging. This happens when solid particles accumulate within the fabric structure, reducing permeability and affectng overall performance. But don’t worry—our after-sales experts are here to share practical, easy-to-implement solutions to effectively prevent this issue.

1. Feed Properly to Avoid Clogging

The feeding process is critical in preventing early cloth clogging. Specifically, the choice of feed pump and appropriate pressure control greatly impact the long-term performance of your filter cloth. Excessively high initial feeding pressure can force solids tightly against the filter cloth, reducing liquid flow and clogging the fabric.

Key recommendations:

 (1).Select a pump model suited to the slurry characteristics, filter press specifications, and process requirements.

(2).Start feeding with low pressure and gradually increase it under controlled conditions to promote the formation of a uniform filter cake.

(3).Avoid abrupt pressure increases, which can compress particles prematurely and clog the filter cloth.

(4).By managing feeding pressure and carefully selecting the pump, you’ll minimize the risk of clogging and maintain efficient and stable filtration performance.

2. Reduce Clogging with Pre-Coating Technology (Specialized Applications)

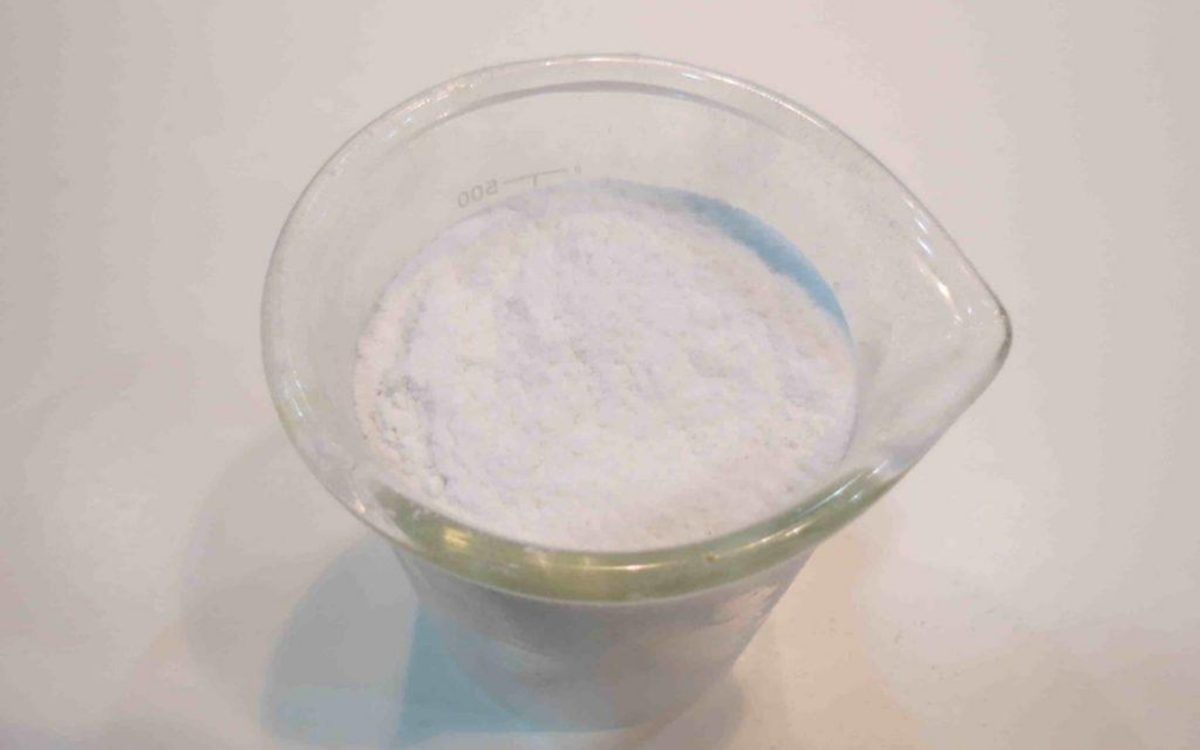

        In certain industries, such as food processing, chemical production, or pharmaceuticals, pre-coating the filter cloth before the filtration process provides an additional protective layer that helps reduce clogging. Materials like diatomaceous earth or perlite are commonly used to form an extra porous medium over the filter cloth.

  This pre-coating layer intercepts solid particles while allowing liquids to pass through, preventing direct contact between the slurry and the filter cloth. The result? Reduced wear and clogging risks, preserving both permeability and filtration performance.

 How to implement pre-coating:

(1).Select a suitable pre-coating material based on your filtration application.

(2).Ensure the pre-coating layer is evenly distributed before starting the filtration process.

(3).Keep in mind that pre-coating is not necessary for every filtration process—it’s mainly applicable to industries where solids are highly abrasive or clog-prone.

(4).When applied appropriately, pre-coating can extend the life of your filter cloth and maintain consistent performance throughout operations.

3. Prevent Clogging Through Routine Cleaning

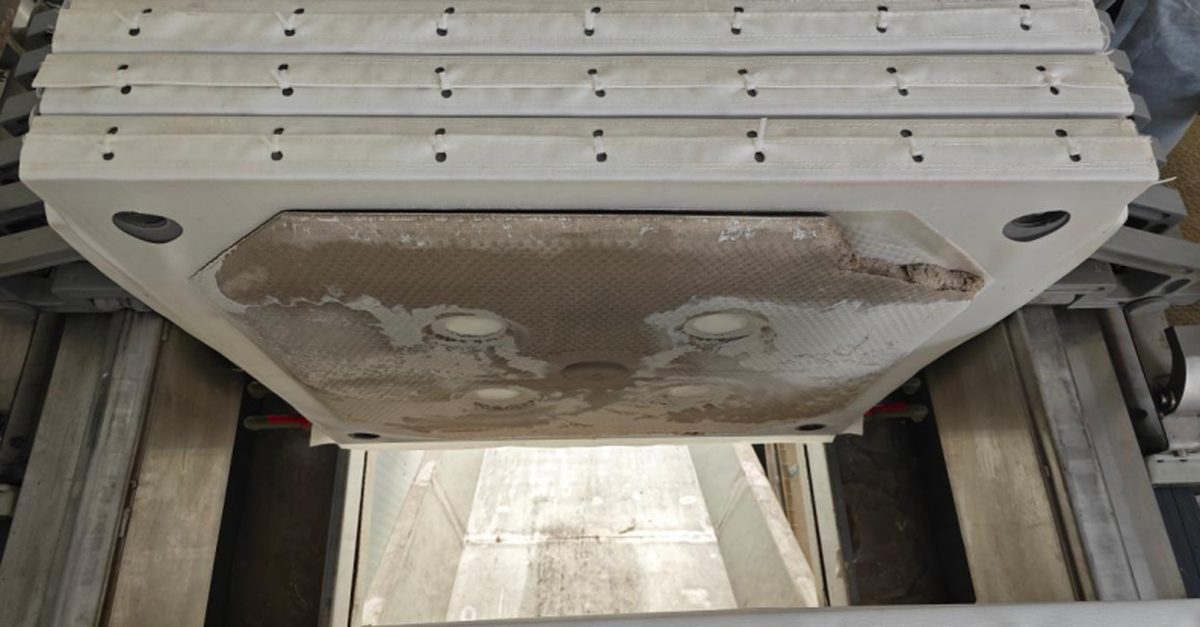

Routine cleaning is essential to maintaining the permeability and performance of filter cloths. Over time, particles may accumulate and obstruct the fabric structure, but cleaning can effectively restore its functionality. The two main cleaning methods are water washing and acid washing.

 Water Washing

High-pressure water cleaning uses physical force to remove accumulated solids and recover the filter cloth’s permeability. This method is particularly effective when filtration cycles take longer than expected or initial filtration pressure rises abnormally.

Key tips:

(1).Use a cleaning pressure of 4.0–5.0 MPa unless otherwise specified by your filter cloth supplier.

(2).Adjust the pressure based on the material properties of the cloth to avoid any damage.

(3).Regular water cleaning ensures that your filter cloth remains effective over time.

 Acid Washing

  For filter cloths clogged with acid-soluble deposits (e.g., from metal-finishing sludge or lime-based slurries), acid cleaning is an effective chemical solution. It helps dissolve mineral deposits and restore filtration performance.

Important considerations:

(1).Prepare a 5–10% hydrochloric acid solution as a starting point.

(2).Adjust the acid concentration, cleaning time, and procedure based on the filter cloth material and deposit type per the manufacturer’s recommendations.

(3).Acid washing isn’t suitable for organic contaminants like those from laundry wastewater, food waste, or biological processing.

(4).When done correctly, acid washing can remove stubborn deposits and reinstate the filter cloth’s functionality. Always follow manufacturer guidelines to avoid damaging your equipment.

Support You Can Rely On

  By following these three expert recommendations, you’ll significantly reduce the risk of filter cloth clogging and ensure your filtration system operates optimally. Regular maintenance and proper use are essential for extending the lifespan of your filter cloth. If you encounter any challenges or need professional help, don’t hesitate to reach out to our Xuda service team. We’re here to provide tailored advice and solutions to keep your equipment in top condition.

 With these proven techniques, you can improve your filtration efficiency, reduce downtimes, and enhance the overall productivity of your operations. Let us be your partner in achieving the best filtration performance!
